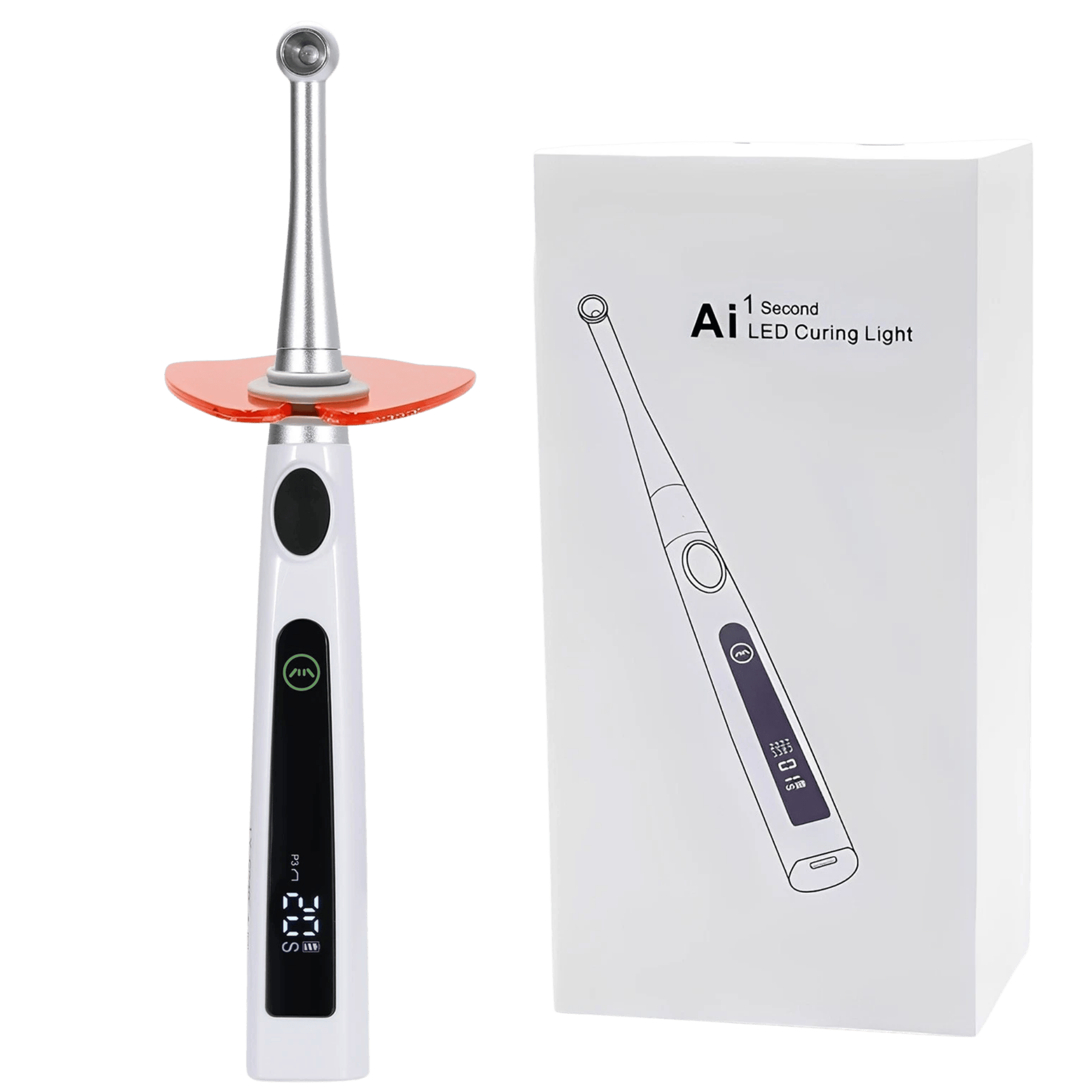

Expert Light-Curing Photopolymerization Lamp for Dental Tooth Gem Application

Expert Light-Curing Photopolymerization Lamp for Dental Tooth Gem Application

The EXPERT Light-Curing Photopolymerization Lamp is specifically designed for professional dental tooth gem (strass dentaire) application.
It provides fast, controlled and safe curing, while ensuring excellent working comfort.

Its fine, small and round curing head allows precise targeting of the bonding area, making it ideal for tooth gems, including small-size gems. This compact shape enables clean work without unnecessary exposure of adjacent teeth.

The lamp is capable of curing resin in as little as 1 second. However, a single 1-second exposure is not recommended to properly secure a tooth gem. Progressive curing remains essential to ensure long-lasting retention.

Equipped with 4 curing modes, this lamp is intended for experienced practitioners seeking precision and reliability.

Key Features

• Fast curing capability (curing possible from 1 second)

• 4 curing modes adapted to dental tooth gem application

• Fine, small and round curing head for optimal precision

• Reduced heat sensation during curing

• Improved tooth gem retention

• Digital display and ergonomic design

• European plug (EU plug) compatible with Europe

• Professional use only

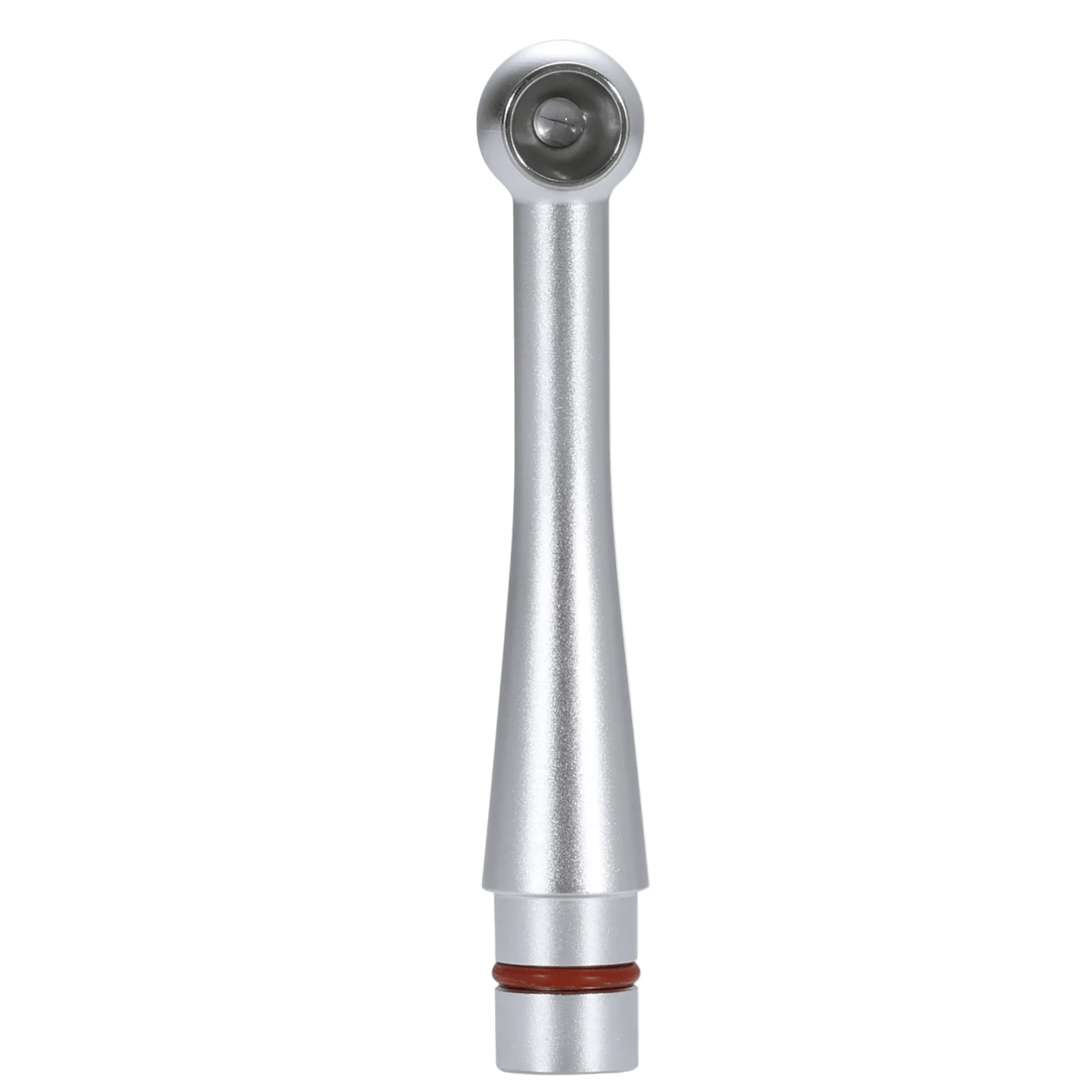

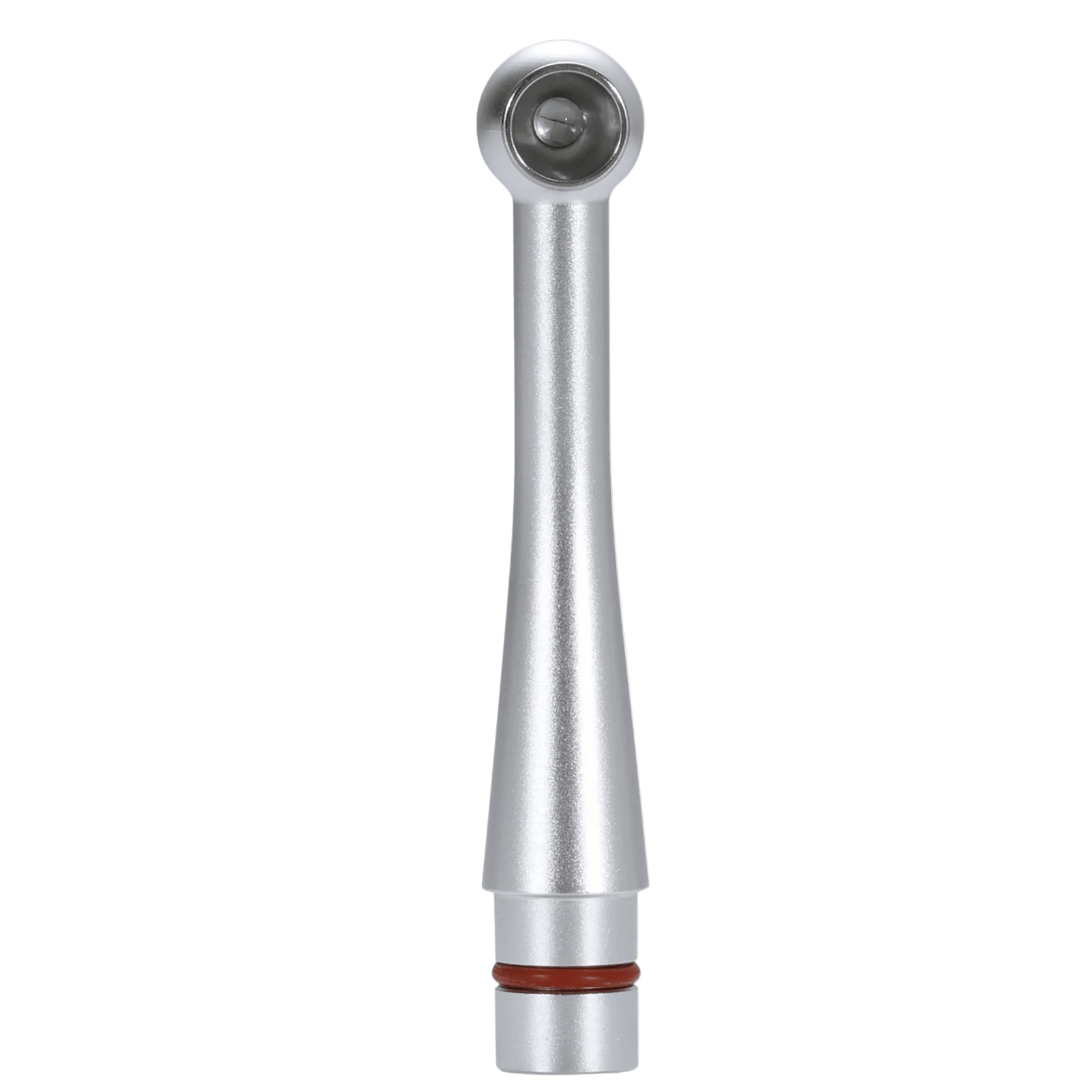

Curing Head – Precision & Control

The EXPERT lamp features a compact, fine and round curing head, specially designed for dental tooth gem application.

This shape allows:

• targeted light exposure on the bonding area only,

• better control of the curing process,

• clean and precise placement,

• reduced exposure of surrounding teeth.

Curing Modes

Strong Mode

High and constant light intensity.
To be used only for final fixation of the tooth gem, after progressive curing.

Flashing Mode

Pulsed (flashing) light mode designed to reduce heat sensation.
Ideal for sensitive clients, with softer light intensity.

Gradually Strong Mode

Progressive curing with gradually increasing intensity.
Recommended for the first curing step to ensure uniform bonding.

AI Mode (H9)

Intelligent mode with automatic light intensity adjustment.
Suitable for technical applications and various resin types.

Important Notice – 1-Second Curing

Although the lamp can cure resin in 1 second, a single 1-second exposure is neither sufficient nor recommended to properly secure a tooth gem.

For optimal retention:

• progressive curing is recommended,

• curing time must be adapted to the resin used,

• multiple exposures may be required.

Technical Specifications

• Light type: Blue light

• Wavelength: 420–480 nm

• Light intensity: 800–2400 mW/cm²

• Minimum curing time: 1 second

• Curing depth: up to 3 mm

• Modes: 4 curing modes

• Battery: Lithium-ion 1200 mAh

• Input voltage: 100–240V ~ 50/60Hz

• Output voltage: DC 5V

• Plug type: European plug (EU plug)

• Weight: 0.55 kg

• Color: White

• Packaging dimensions: 170 × 85 × 62 mm

Package Contents

• 1 EXPERT light-curing photopolymerization lamp

• 1 charging cable with European plug (EU)

Professional Recommendation

For safe and long-lasting dental tooth gem application, it is recommended:

• to use Gradually Strong Mode and finish process with Strong Mode.

For Professional Use Only

This product is intended for professional dental tooth gem (tooth gems) application only.
Proper training and technique are required to ensure optimal results.
